Automatic Cement Slab Separator & Palletizer

उत्पाद का विवरण

प्रमुखता देना:

automatic cement slab separator

palletizer machine for cement

slab separator with palletizer

उत्पाद का वर्णन

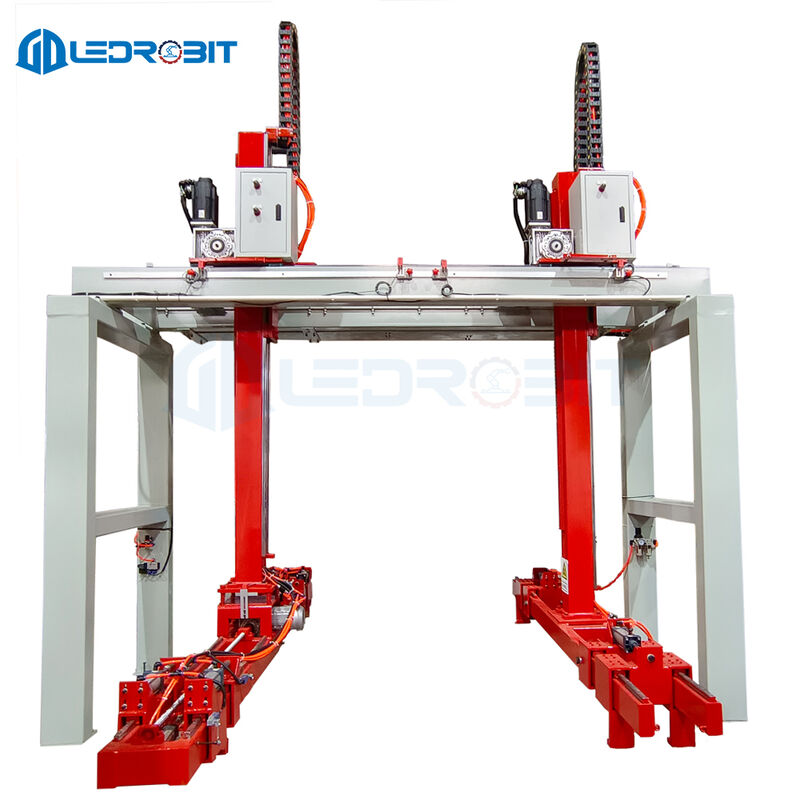

Automatic Cement Slab Separator & Palletizer

All-in-One Automatic Cement Slab De-Palletizing & Stacking System for Large-Format Boards | Servo-Driven, Dust-Proof, Fully Customizable

Tired of prying large cement boards off wooden pallets by hand? Our Integrated De-Palletizing & Stacking Machine pulls, flips, centers and stacks every slab—automatically—so your crew never touches a board again.

What it does in one seamless cycle

Clamps the cured slab without edge chipping
Lifts it straight off the pallet—no wedges, no hammer marks
Rotates 90/180° if needed and places it onto the outgoing A-frame or rack
Returns the empty pallet to the reuse line—continuous loop, zero downtime

Why factories switch to this system

All-in-one frame — de-stacker and stacker share the same servo gantry, saving 30% floor space
Servo accuracy — ±1 mm repeatability protects polished or chamfered faces
Heavy-duty build — Epoxy-coated steel, sealed IP55 servo cabinet; thrives in cement-dust halls with only quarterly greasing
Labor saver — cuts 3-4 operators per shift; payback <10 months
Made-to-measure — gantry height, gripper width, roller direction and stack pattern are all customized to fit your existing hall and curing racks

Operator-friendly features

7-inch LCD touch screen — recipe change in 3 taps, no PLC laptop needed
Wireless remote — teach positions from a safe distance
Emergency stop + audio/visual alarm — instant halt, full diagnostics on screen

Quick specs

Load	1000 kg / cycle
Cycle time	25-30 s per slab (size dependent)
Axis	5-axis servo + programmable grip force
Power	380 V 50 Hz, 5 kW peak, energy-recovery brake
Noise	<72 dB

Get a custom drawing in 24h

Send us slab size, pallet size and hourly target. We'll return a free CAD layout, cycle-time report within two business days. Custom machines ship in 15-20 days and are stacking within a week of arrival.

Stop losing margin on manual separation. Let the All-in-One Cement Slab De-Palletizer & Stacker pull, place and pallet—perfectly, every time, in the exact footprint you need.
